    • Product Description

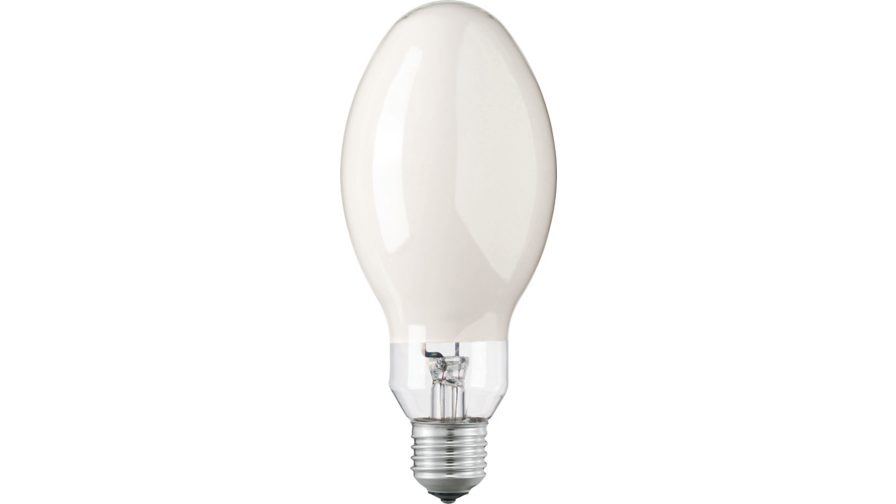

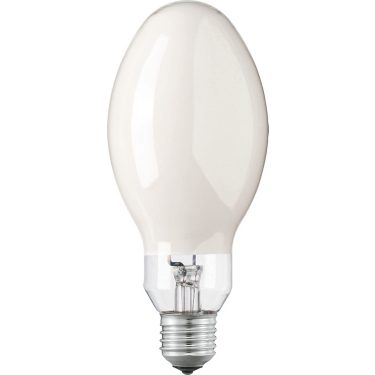

      HPL-N 125W/542 E27  1CT/24
      HPL-N 125W/542 E27  1CT/24

      HPL-N 125W/542 E27 1CT/24

      Order code: 928052007391

      Full Product Code: 692059027779500

      Downloads

      Spec Sheet
      Size:382.3 kB

      See all downloads

    Specifications Show all

    General Information
    Cap base
    E27  [ E27]
    Burning Position
    UNIVERSAL  [ Any/Universal]
    Life to 5% failures (nom.)
    6000 h
    Life to 20% failures (nom.)
    12000 h
    Life to 50% failures (nom.)
    20000 h
    LSF 2000 h Rated
    99 %
    LSF 4000 h Rated
    98 %
    LSF 6000 h Rated
    95 %
    LSF 8000 h Rated
    92 %
    LSF 12000 h Rated
    80 %
    LSF 16000 h Rated
    68 %
    LSF 20000 h Rated
    50 %
    Light Technical
    Colour Code
    542  [ CCT of 4,200 K]
    Lamp Luminous Flux (Nom)
    6200 lm
    Colour Designation
    Cool White (CW)
    Lumen maintenance 2,000 hours (min.)
    82 %
    Lumen maintenance 2,000 hours (nom.)
    92 %
    Lumen maintenance 5,000 hours (min.)
    80 %
    Lumen maintenance 5,000 hours (nom.)
    90 %
    Chromaticity coordinate X (nom.)
    374
    Chromaticity coordinate Y (nom.)
    373
    Colour Temperature, horizontal (Nom)
    4100 K
    Lamp Luminous Efficacy EM (Nom)
    50 lm/W
    Colour Rendering Index,horiz (Nom)
    46
    LLMF 2000 h Rated
    92 %
    LLMF 4000 h Rated
    91 %
    LLMF 6000 h Rated
    89 %
    LLMF 8000 h Rated
    88 %
    LLMF 12000 h Rated
    85 %
    LLMF 16000 h Rated
    80 %
    LLMF 20000 h Rated
    76 %
    Operating and Electrical
    Technical Lamp Power (Nom)
    125.0 W
    Lamp current (EM) (nom.)
    1.15 A
    Ignition supply voltage (max.)
    170 V
    Voltage (max.)
    135 V
    Voltage (min.)
    115 V
    Voltage (nom.)
    125 V
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Lamp Finish
    Coated glass
    Bulb material
    Soft Glass
    Approval and Application
    Energy efficiency label (EEL)
    B
    Mercury (Hg) content (nom.)
    19.0 mg
    Energy consumption kWh/1,000 hours
    137 kWh
    Luminaire Design Requirements
    Bulb temperature (max.)
    350 °C
    Cap-base temperature (max.)
    200 °C
    Product Data
    Full product code
    692059027779500
    Order product name
    HPL-N 125W/542 E27 1CT/24
    EAN/UPC – product
    6920590277795
    Order code
    928052007391
    SAP numerator – quantity per pack
    1
    Numerator – packs per outer box
    24
    SAP material
    928052007391
    SAP net weight (piece)
    63.000 g
    ILCOS code
    QE-125/41/3-H-E27
    Installation Diagrams
    Performance Diagrams
    LDRU_HPL-Lamp performance during run-up
    LDRU_HPL-Lamp performance during run-up
    LDLM_HPL_0001-Lumen maintenance diagram
    LDLM_HPL_0001-Lumen maintenance diagram
    LDLE_HPL_0001-Life expectancy diagram
    LDLE_HPL_0001-Life expectancy diagram
    Photometrics
    LDPO_HPL_N-Spectral power distribution Colour
    LDPO_HPL_N-Spectral power distribution Colour
    LDCR_HPL_N_125W-Colour rendering diagram
    LDCR_HPL_N_125W-Colour rendering diagram
