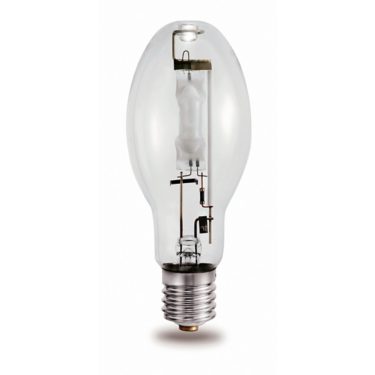

MH 400W/640 E40 CL U 1SL/6

Specifications Show all

General Information

Cap base	E40  [ E40]
Burning Position	H  [ Hanging or Base Up (BU)]
Life to 50% failures (nom.)	20000 h
System description	-

Light Technical

Colour Code	640  [ CCT of 4,000 K]
Lamp Luminous Flux (Min)	34000 lm
Lamp Luminous Flux (Nom)	39000 lm
Colour Designation	Cool White (CW)
Lumen maintenance 2,000 hours (nom.)	85 %
Chromaticity coordinate X (nom.)	390
Chromaticity coordinate Y (nom.)	400
Colour Temperature, horizontal (Nom)	3900 K
Lamp Luminous Efficacy EM (Nom)	97.5 lm/W
Colour Rendering Index,horiz (Nom)	60

Operating and Electrical

Technical Lamp Power (Max)	440.0 W
Technical Lamp Power (Min)	- W
Technical Lamp Power (Nom)	400.0 W
Lamp current run-up (max.)	5 A
Lamp current (EM) (nom.)	3.25 A
Ignition supply voltage (max.)	198 V
Ignition supply voltage (min.)	198 V
Ignition time (max.)	120 s
Voltage (max.)	150 V
Voltage (min.)	120 V
Voltage (nom.)	135 V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Lamp Finish	Clear
Bulb shape	ED120  [ ED 120 mm]

Approval and Application

Mercury (Hg) content (nom.)	38 mg
Energy consumption kWh/1,000 hours	440 kWh

Luminaire Design Requirements

Bulb temperature (max.)	400 °C
Cap-base temperature (max.)	210 °C

Product Data

Full product code	871150019939310
Order product name	MH 400W/640 E40 CL U 1SL/6
EAN/UPC – product	8711500199393
Order code	928480400097
SAP numerator – quantity per pack	1
Numerator – packs per outer box	6
SAP material	928480400097
SAP net weight (piece)	0.259 kg
