    • Simple, robust magnetic ballast

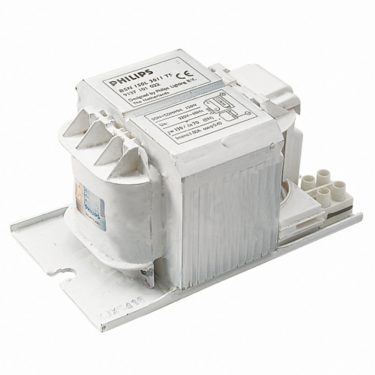

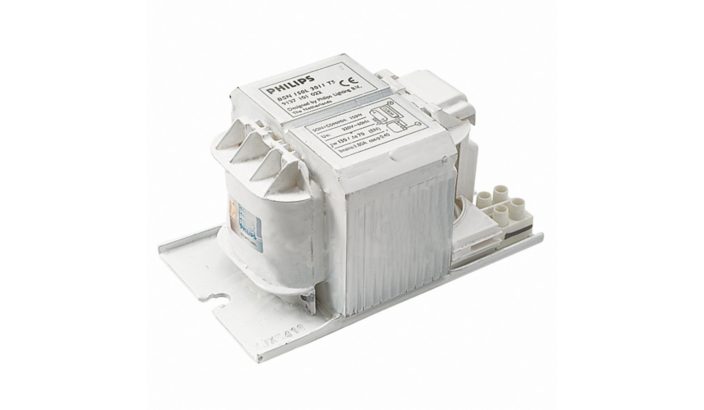

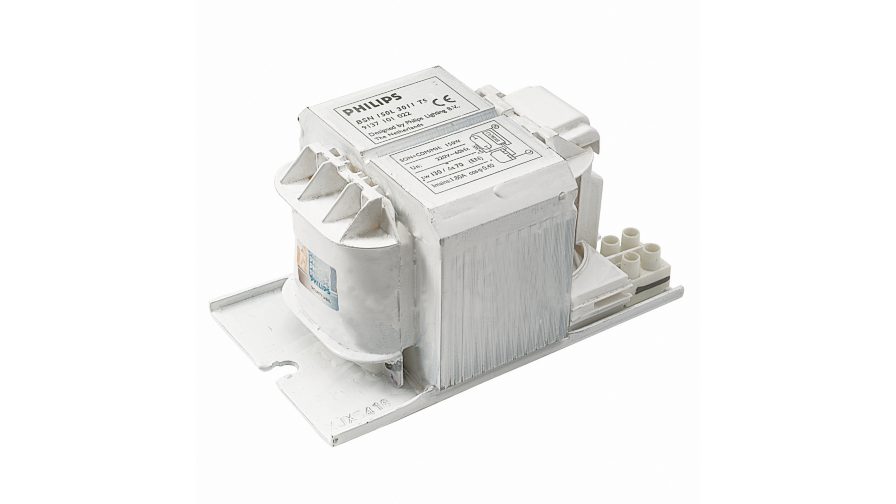

      BHLA 125L 200
      BHLA 125L 200
      HID-Basic ballasts for HPL and HPI(PLUS) lamps

      BHLA 125L 200

      Order code: 913713018659

      Full product code: 872790095590300

      Downloads

      Spec Sheet
      Size:591.6 kB

      See all downloads

    Specifications Show all

    General information
    Application code
    L200
    Operating and electrical
    Input Voltage
    220 V
    Input frequency
    50 Hz
    Power factor 100% load (min.)
    0.55
    Mains voltage performance (AC)
    -8%-+6%
    Mains voltage safety (AC)
    -10%-+10%
    Input current with PF correction
    1.95 A
    Input current without PF Correction
    2.18 A
    Power factor without PF compensation (nom.)
    0.85
    Power losses (nom.)
    14.2 W
    Wiring
    Connector type
    Screw
    System characteristics
    Rated ballast-lamp power
    125 W
    Temperature
    T-winding (max.)
    130 °C
    Delta-T normal conditions
    70 °C
    Approval and application
    Approval marks
    CE marking
    CCC certificate
    Product data
    Full product code
    872790095590300
    Order product name
    BHLA 125L 200
    EAN/UPC – product
    8711500999863
    Order code
    913713018659
    SAP numerator – quantity per pack
    1
    Numerator – packs per outer box
    6
    SAP material
    913713018659
    Net Weight (Piece)
    1.250 kg
    Installation Diagrams
