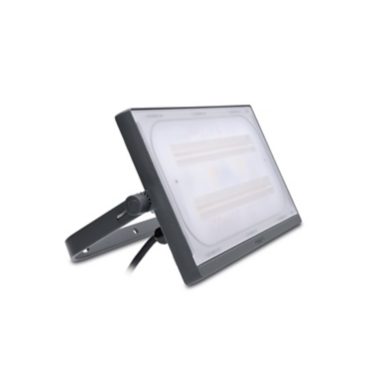

BVP174 LED112/WW 100W WB GREY CE

Specifications Show all

General Information

Lamp colour code	730 warm white
Driver included	No
Optical cover/lens type	Polycarbonate bowl/cover
Control interface	-
Connection	Flying leads/cables
Cable	Cable 0.6 m without plug
Protection class IEC	Safety class I
Flammability mark	For mounting on normally flammable surfaces
CE mark	CE mark

Operating and Electrical

Input Voltage	220 to 240 V
Input frequency	50 or 60 Hz
Power factor (min.)	0.95

Controls and Dimming

Dimmable

No

Mechanical and Housing

Housing material	Aluminium die–cast
Optical cover/lens material	Polycarbonate
Overall length	356 mm
Overall width	190 mm
Overall height	53 mm
Effective projected area	0.056 m²
Colour	Dark Grey

Approval and Application

Ingress protection code	IP65  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK07  [ 2 J reinforced]

Initial Performance (IEC Compliant)

Initial luminous flux (system flux)	11200 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	115 lm/W
Lamp colour temperature	3000 K
Colour Rendering Index	>80
Initial chromaticity	(0.43, 0.40) SDCM<7
Initial input power	100 W
Power consumption tolerance	+/-10%

Application Conditions

Ambient temperature range

-40 to +45 °C

Product Data

Full product code	871951454669199
Order product name	BVP174 LED112/WW 100W WB GREY CE
EAN/UPC – product	8719514546691
Order code	911401689107
SAP numerator – quantity per pack	1
Numerator – packs per outer box	6
SAP material	911401689107
SAP net weight (piece)	2.490 kg
